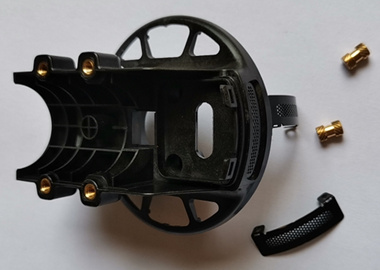

Part Name : UAV accessories Mold Size : 550 X 600X 510 Resin: ABS+PC &screw & metal parts Cavity NO: 1X2 /Cycle Time: 38s Clamping Force: 380T Mold steel : 1.2344 Mold base : LKM /Mold standard: HASCO

Mold Description: Mold Size : 500x500x530 Resin: PC 2456 Mold NO: 1x4Cavity Mold Hot runner :4 Drop with point Gate Cycle Time:50s Clamping Force:180T Mold material : 718H(HR 30~32°）with 1,2344(HR40~42°） Lead-time: 12 weeks(including design time).

Mold Description: Mold Size : 396x646x634MM Resin: BOM Mold NO:1x1/1x2 Cavity Mold Cold runner -edge gate /Cycle Time:80s Clamping Force: 250-350T Mold Steel :1.2343SR/H13SR/8407 Cavity Surface treatment : Chrome faced It is include many dimension. Such as the concentricity and the concentric circles dimension. 1. The Melt flow rate of material is very high, It is easier appear the flash when the clearance is over 0.02mm. The mold temperate is about 120℃ to 140℃. So for the component clearance is very difficult to control.

Design and development Case of insert molding: —Multi-metals insert over mold —Complicated insert fixation —Difficult fill with hot runner —Perfect metals insert fixation —Extremely short cycle time Part size:127.97X229.85X151.72MM Part material:PA66+30%GF/metals insert Cavity Number:1x1 Cycle time:45S Design time:6workdays Manufacture time:40workdays

Mold Description: Part Name: Sealing Products 2K Mold Size : 450X850X670 Resin: 1st shot: PP(Black) 2nd shot: TPE (white) 1st shot: 1Drop with Open Nozzle to cold runner with sub gate 2nd shot: 1Drop with Open Nozzle to cold runner with sub gate Cycle Time:45S Clamping Force:160T Characteristic: In general, the 2nd shot is molding by the slider. 1.After finishing close the slider for sealing the 1st shot,we molding the 1st shot. 2. After finish the 1st shot, the slider will release the space for the 2nd shot.

Choice of steel : Based on PC property: Only a few steel can be use to make transparent lamp mold, mainly DAIDO NAK80,ASSAB S136/S136H, Greodiz 1.2344ESR，HITACHI HPM magic. Considering the comprehensive polishing property and steel cost, DAIDO NAK 80 is commonly used.
